- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 1
- Place of Origin: ZHEJIANG
- Brand Name: TIANBAR

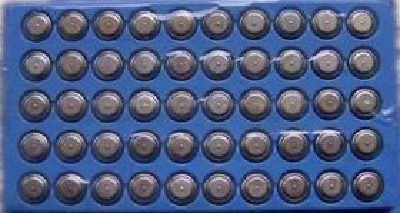

- Model Number: Li-SOCL2 Cell Batteries CR2032 neutral button battery
- Weight: 1.000 kg
1. SUBJECT
This specification presents typical and guaranteed ex-work values of the Lithium Manganese Dioxide Button Cells (Li / MnO2), of Model CR2032
Manganese dioxide (MnO2) is used for the active cathode material, and high voltage, high activity lithium metal for the anode material. Battery discharge reactions are as follows:
Anode reaction: | MnO2 +Li+ +e- | -> | MnOOLi |
Cathode reaction: | Li | -> | Li+ +e- |
Total reaction: | MnO2 +Li | -> | MnOOLi |
2.GENERAL FEATURES AND APPLICATIONS
2.1 Features:
- Ø Light Weight, High Voltage and High Energy Density
- Ø Excellent Stable Discharge Characteristics
- Ø Outstanding Temperature Characteristics
- Ø Excellent Leakage Resistance
- Ø Excellent Long-term Reliability
2.2 Applications:
- Ø Watches
- Ø Calculators
- Ø PC notebooks
- Ø Electronic Keys
- Ø Card-Type Radios
- Ø IC Cards
- Ø Memory Cards
- Ø Medical Equipment
- Ø CMOS memory backup
3. GENERAL SPECIFICATION
Item | Unit | Specifications | Conditions | |
Nominal Voltage | V | 3.0 | Standard Discharge | |
Nominal Capacity | mAh | 2 4 0 | Standard discharge with load 15k Ω, till 2.0v end-voltage | |
Storage temperature | ℃ | 0~35 |
| |
Operation temperature | ℃ | -20~60 |
| |
Standard Weight | g | 3.0 | Unit cell | |
Dimension | Diameter | 20.0 (- 0.3mm) |
| |
Height | 3.2 (-0.3mm) |
| ||
Discharge | Initial | Standard | 1 05 0h | Continuous discharge with load 15k Ω , till 2.0V end-voltage at 20~25 ℃ |
Minimum | 10 00h | |||
After 12 Months Storage | Standard | 1000 h | ||
Minimum | 950 h | |||
4.PERFORMANCE AND TEST METHODS
Unless otherwise stated, all the testing is carried out under the condition: environmental temperature, 20℃~25℃; environmental humidity, 65±20%. Please refer to Table 4.1
Characteristics
No | ITEM | TEST METHODS | STANDARED | |
1 | Dimensions | Using vernier caliper (accuracy≥0.02) while avoiding short-circuit | Diameter | 20.0 (-0.3) mm |
Height | 3.2 (-0.3) mm | |||
2 | Appearance | Eyeballing | Bright, clean, no rust, no leakage, And no flaw | |
3 | Capacity | Continuously discharge for 8 hours with load 15k Ohm | 1100h | |
4 | Vibration test | Put battery on the platform of the vibrations machine, start the machine and adjust the frequency form 10 times per minute to 15 times per minute. keep it running for an hour | Characteristics keep stability | |
5 | Over discharge Test | After 2.0V end-voltage, continuously discharged for 1.2V | No leakage allowed | |
